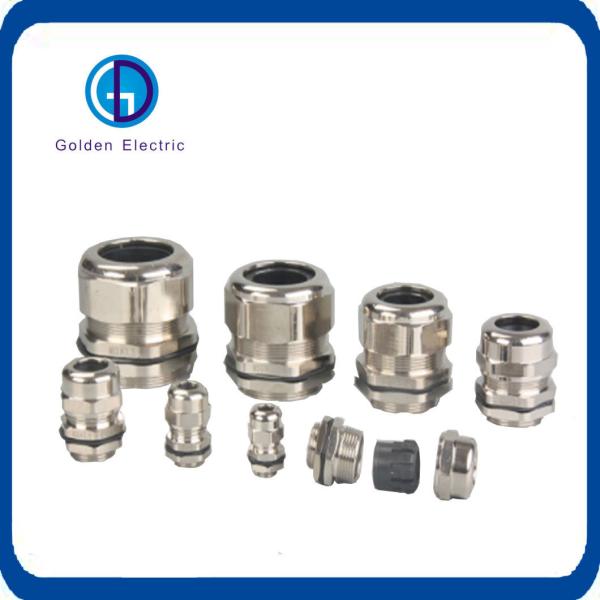

Jx IP68 Brass EMC Anti-Magnet Cable Gland -40-100 Thread Length Standard Customization

Name: Jx IP68 Brass EMC AntiMagnet Cable Gland 40100 Thread Length Standard Customization
Brand: Golden Electric /OEM
Price: 1 USD

Quality Jx IP68 Brass EMC Anti-Magnet Cable Gland -40-100 Thread Length Standard Customization for sale

Model NO. : E-110 SERIES

Clamping Insert : Nylon PA

Working Temperature : -40~100

Advantages : Fast Delivery

Size : M10-M100

Model Number : M10-M100

Key Words : Brass Cable Gland

Function : Cable Protection

Hot Searching : Atex Cable Gland

Samples : US$ 5/Piece 1 Piece(Min.Order) | Request Samp

Feature : Seal Part Hold Cable Firmly

MOQ : 100PCS

Work Temperature : 40~+100

Cable Gland : Waterproof

Thread Length : Standard & Customization

Other Size : Customization

Transport Package : Standard Export Carton

Specification : Metric / PG / G / NPT

Trademark : Golden Electric

Origin : China

HS Code : 33039649

Supply Ability : 5000/Month

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Surface Treatment : Electroplating

Color : Metallic Color

IP Rating : IP68

Material : Brass Nickel Plated

Type : Straight Head

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

Jx IP68 Brass EMC Anti-Magnet Cable Gland -40-100 Thread Length Standard Customization

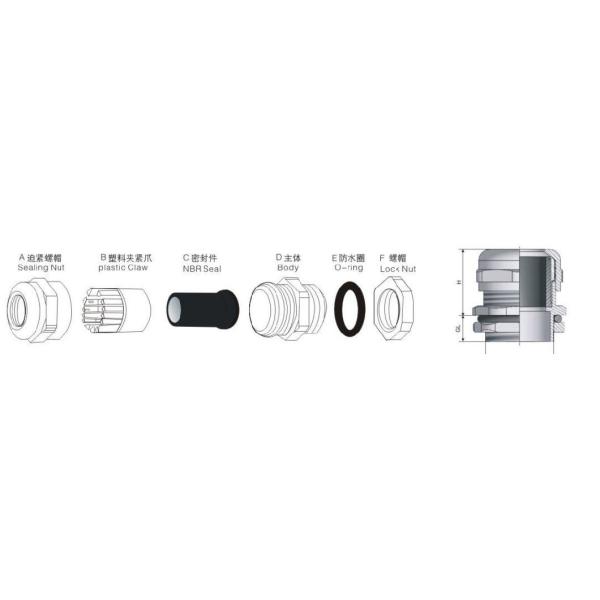

Material: The joint body parts are made of nickel plated brass, the clamping insert is made of Nylon PA, and the seal is made up of nitrile rubber(NBR) ,using weathering rubber (EDPM) .

Product Certification: CE, ROHS, IP68 and ISO9001.

Protection Degree: in the specific cable range, the using of the O-ring helps tighten head, so that to reach IP68-10 bar pressure.

Working temperature: Static: -40ºC to 100ºC, Short

time to 120ºC.

Thread length: The short thread is suitable for holes in the board or equipment with inner thread, while the long thread is available for thick planted.

Usage: Fix the machine board with the body, and press the tight head tightly to fix the cable.

More options: Customization is acceptable.

Product parameters:
Jx IP68 Brass EMC Anti-Magnet Cable Gland -40-100 Thread Length Standard Customization

Breathable Cable Gland--- metric thread
Product Code	Thread AG	Cable range(mm)	Thread Length (mm)	Thread O.D (mm)	Spanner Size (mm)
JX-M12-BR	M12	3-6.5	7	11.9	17
JX-M14-BR	M14	4-8	7	13.9	19
JX-M16-BR	M16	4-8	7	15.9	21
JX-M18-BR	M18	5-10	8	17.9	22
JX-M20-BR	M20	6-12	8	19.9	24
JX-M22-BR	M22	10-14	8	21.9	27
JX-M25-BR	M25	10-16	9	24.9	27
JX-M27-BR	M27	13-18	9	26.9	30
JX-M28-BR	M28	13-18	9	27.9	30
JX-M30-BR	M30	13-18	10	29.9	36
JX-M32-BR	M32	15-22	10	31.9	38
JX-M37-BR	M36	18-25	12	36.9	42
JX-M40-BR	M40	22-30	12	39.9	46
Longer Thread Cable Gland-- Metric thread
Product Code	Thread AG	Cable range(mm)	Thread O.D. (mm)	Thread length GL(mm)	Spanner Size (mm)
JX-M8L	M8*1.0	2-5	8	8	12
JX-M10L	M10*1.0	3-6.5	10	10	14
JX-M12L	M12*1.5	3-6.5	12	10	14
JX-M14L	M14*1.5	4-8	14	12	17
JX-M16L	M16*1.5	4-8	16	12	18
JX-M18L	M18*1.5	5-10	18	12	20
JX-M20L	M20*1.5	6-12	20	12	22
JX-M22L	M22*1.5	10-14	22	12	24
JX-M24L	M24*1.5	10-14	24	12	24/27
JX-M25-14L	M25*1.5	10-14	25	12	24/27
JX-M25-18L	M25*1.5	13-18	25	12	30/27
JX-M27L	M27*1.5	13-18	27	12	30
JX-M28L	M28*1.5	13-18	28	12	30
JX-M30L	M30*1.5	13-18	30	14	30/32
JX-M32L	M32*1.5	15-22	32	14	35
JX-M33L	M33*1.5	15-22	33	14	35
JX-M36L	M36*1.5	18-25	36	14	40
JX-M37L	M37*1.5	18-25	37	14	40
JX-M40-25L	M40*1.5	18-25	40	15	40/45
JX-M40-30L	M40*1.5	22-30	40	15	45
JX-M42L	M42*1.5	22-30	42	15	45
JX-M47L	M47*1.5	25-33	47	15	50
JX-M48L	M48*1.5	25-33	48	15	50/52
JX-M50L	M50*1.5	32-38	50	15	57/55
JX-M54L	M54*1.5	32-38	54	15	57
JX-M60L	M60*1.5	37-44	60	16	64
JX-M63L	M63*1.5	37-44	63	16	64/68
JX-M64L	M64*2.0	37-44	64	16	64/68
JX-M72L	M72*2.0	42-52	72	18	78
JX-M75L	M75*2.0	42-52	75	18	78/80
JX-M80L	M80*2.0	50-62	80	20	86/88
JX-M88L	M88*2.0	60-70	88	20	98
JX-M100L	M100*2.0	70-80	100	22	110

Field of Application

Cable glands are mechanical cable entry devices. They are used throughout a number of industries in conjunction with cable and wiring used in elelctrical instrumentation and automation systems.

Cable gland may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the charachteristcs of the enclosure which the cable enters can be maintained adequately.
